Magnetically shielded construction (閉磁路構造設計)
●
Compact and thin (輕便薄小)
●
Strong ability to resist EMI(抗EMI能力強)
●
Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
●
Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)
■ Product Identification/產品識別
NR
8020
2R2
M
S
Z
(1)
(2)
(3)
(4）
（5）
（6）
1.
Series name/產品名稱
2.
Dimensions/產品尺寸
3.
Inductance value/電感值
4.
Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.
Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.
The packing way/包裝方式（Z:冷封裝，R:熱封裝）

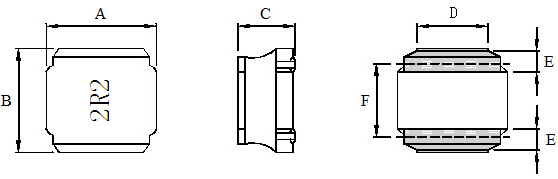

■ Mechanical dimensions
/機械尺寸
Unit In mm
Type
A
B
C
D
E
F
±0.3
±0.3
(max)
±0.3
±0.3
±0.3
NR8040
8.0
8.0
4.20
6.30
2.20
4.00
■ Electrical Characteristics for CR8040 Series/CR8040系列電子特性規格
